SWO9700 Fusion Pulse
SWO9700 FUSION PULSE UNIT

SWO9700
Full Flush

Fusion Pulse logo

Innovative, functional, environmentally efficient and cost effective.

If you require incredibly robust and secure welfare and office space with the added feature of a large toilet area and a spacious canteen, then the static SWO9700 Fusion Pulse is the ideal static unit.

The SWO9700 Fusion Pulse unit can accommodate up to fourteen people, providing all your on-site needs in one reliable, easy to use and cost effective package. Large water and waste tanks significantly reduce the number of call outs required, saving you money.

This welfare unit offers additional cost savings too, as the heating is supplied by an on board system which does not require the generator to run. The generator will only be required for microwave, kettle and hot water system.

SWO9700 Fusion Pulse Full Flush Highlights.
SWO9700 Fusion Pulse interior

Interior.

The SWO9700 Fusion Pulse Full Flush Static unit can accommodate twelve plus two persons, with a well equipped canteen area featuring hard-wired microwave and kettle, access to drinking water, and large stainless steel sink c/w warm water tap. These facilities provide a pleasant and safe working environment, ideal for rental companies and contractors.

Learn more
Interior.

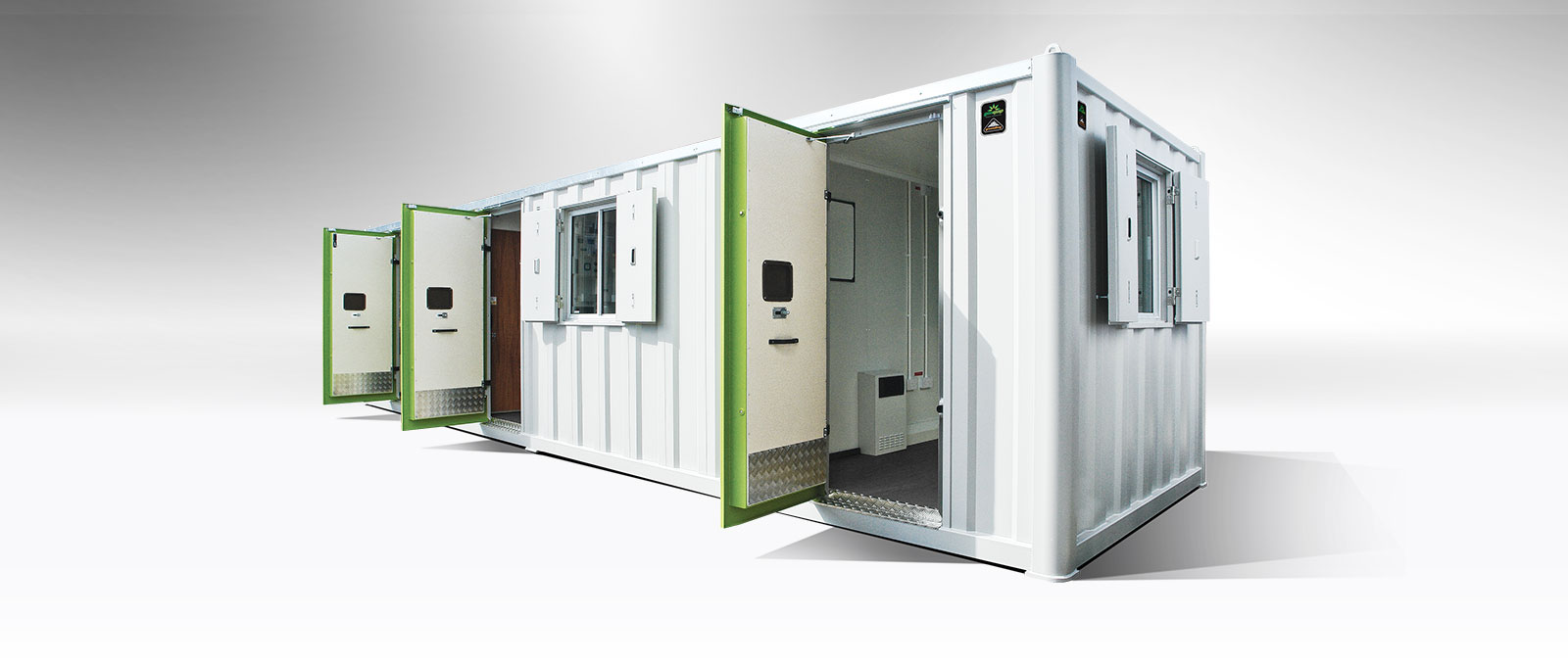

SWO9700 Fusion Pulse Exterior

Exterior.

The robust all steel construction forms one of the most secure welfare units on the market. The personnel door has a built-in lock with hidden hinges, the high-security shutters protect the internally locked windows.

Learn more
Exterior.
Key Specification Data.
SWO9700 Fusion Pulse Full Flush static welfare unit.
Seats up to 12 plus 2 people
seating iconseating iconseating iconseating iconseating iconseating iconseating iconseating iconseating iconseating iconseating iconseating icon + seating iconseating icon
Generator 9.8kVA
Dimensions 9760 mm (L) x 2755 mm (W)
Unladen Weight 5,500 kg
Possible Gross Weight 7,010 kg
GP360 Eco Fusion Pulse side view
Detailed Specifications.
Length 9760 mm
Width 2755 mm
Height 2.5 m
Unladen Weight 5500 kg
Possible Gross Weight 7010 kg
Solar Panel x1
Generator 9.8 kVA
Fresh Water 600 Litres
Waste Water 650 Litres
Fuel Tank Size 300 Litres

  • Sliding window with steel shutters, which when closed are secured internally
  • Notice and wipe clean board
  • Can accommodate 2 people
  • Office table and chair (optional)
  • Air blown heating system – thermostatically controlled
  • 12V LED lighting with PIR
  • 12V inverter sockets for use of laptops & battery charging
  • 230V double socket

  • Pleasant and light rest area
  • Table and bench seating for up to 12 people
  • Air blown heating system – thermostatically controlled
  • Warm water supplied by on-board 12V heating system
  • Microwave and kettle – both hard-wired
  • Stainless steel sink with instant warm water
  • Worktop storage (1,000mm) base unit
  • Consumer board c/w RCD & MCB’s
  • Hour run meter on generator
  • Carbon monoxide monitor and smoke alarm
  • Paper towels, liquid soap and cup dispenser
  • 1,200 x 900mm notice board
  • 1 x 230v double, 1 x single 230v socket & 1 x single inverter powered socket
  • 12V socket and USB (optional)
  • 12V LED lighting with PIR

  • 12V LED lighting with PIR
  • Air blown heating system – thermostatically controlled
  • Bench seating and coat hooks
  • 12V fuse board and inverter for sockets
  • Diesel powered heating system
  • High Level Window

  • Waterless urinal / Eco full flush ceramic toilet
  • Ceramic hand wash basin with warm water tap
  • Warm water supplied by on-board 12V heating system
  • Toilet roll holder / mirror
  • 12V LED lighting with PIR
  • Liquid soap and paper towel dispenser
  • High Level Window

  • 9.8kVA super silent diesel generator with exhaust outlet and ventilation
  • 300 litre diesel tank with filler neck and level gauge
  • Fuel tank runtime = approx. 120 hours
  • 600L fresh water tank and 650L waste tank
  • 12V LED lighting with PIR
  • Frost stat
  • Generator start battery
  • Air blown heating system

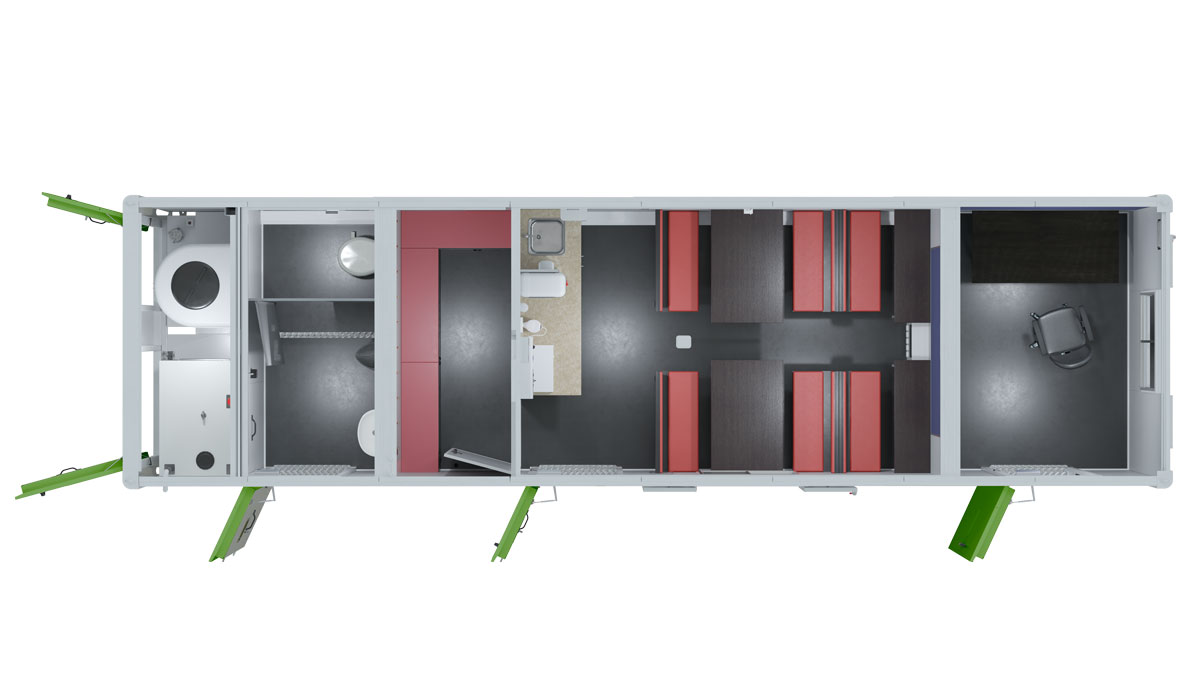

SWO9700 Fusion Pulse Full Flush Plan view SWO9700 Fusion Pulse Full Flush Plan view
Hog Power S98 Hog Power S98

HogPower
S98.

The SWO9700 Fusion Pulse unit is powered by a proven robust and easy to use generator with world class performance.

Learn more
Fusion Pulse logo

Intelligent Solar Technology.

Fusion Pulse utilises a highly efficient AGM battery and is charged via the intelligent solar power system built in controller, backed up by an on-board power silenced generator – ensuring optimum performance is maintained when in use and unmanned.

This allows the LED lighting, diesel powered heating system and inverter powered electrical sockets to be operational and also dispenses warm water in toilet and canteen – all without the need for the generator to be running.*

* The generator only needs to be running to power the microwave, kettle & hot water system

How the Fusion Pulse system
byGroundhog logo white works.
How the Fusion Pulse system by Groundhog works How the Fusion Pulse system by Groundhog works

Eco Benefits.

Engineering a Zero Carbon Future. Helping you achieve realistic carbon reduction goals.

Figures are for guidance only. For your own specific savings, contact us for your bespoke value proposition.

fuel costs reduced by up to 80%
generator runtim reduced up to 80%
Low noise polution
0% nox and sox when generator is not in use
co2 emissions reduced up to 80%

Saving you money.

The latest concept in hybrid solar technology delivers cost effective, environmentally efficient, robust & easy to operate welfare units.
