THE GROUNDHOG
GROUND LOWERING, ANTI-VANDAL

GPO660 FUSION PULSE

Mobile Welfare Unit

  • Warm water supplied by an on-board heating system
  • Air blown heating system
  • Secured in less than 3 minutes
  • High security doors and windows
  • Meets HSE & CDM requirements
  • Removable low level lifting eyes
  • 12V LED lighting with PIR
  • Inverter powered sockets with USB connection
  • Powered by roof mounted solar panel with generator back up

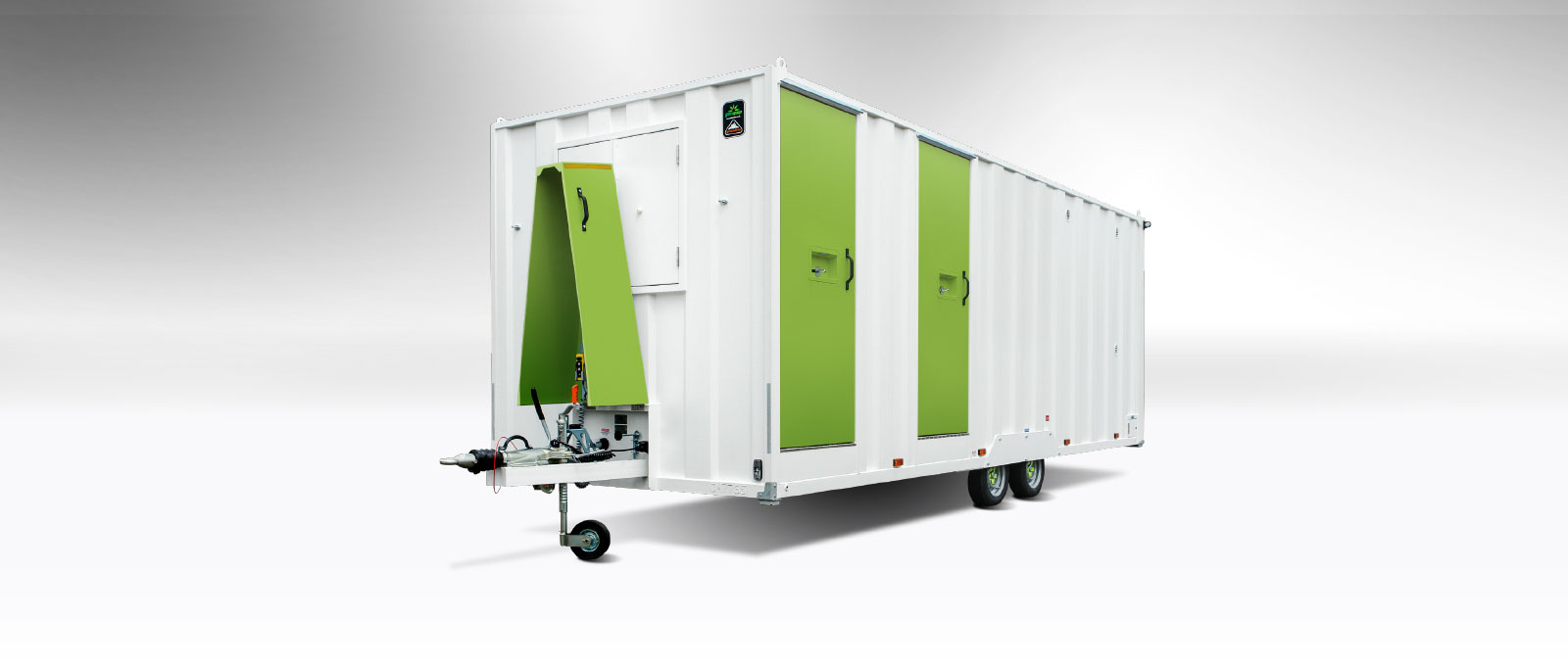

Mobile welfare unit GPO660 Office Eco fusion

MOBILE WELFARE UNITS

Groundhog ECO FUSION MOBILE

Ground lowering, anti-vandal, mobile, site accommodation unit

The mobile GPO660 Welfare Office Eco Fusion offers all the latest standard features and benefits of the GPO500 but with a larger seating
area, accommodating up to 10 people.

Lowered & Secured in less than 3 minutes

The Groundhog Eco Fusion Mobile Welfare Units have been approved by VCA

Innovative, functional, environmentally efficient and cost effective

The GPO660 Eco Fusion offers the legendary robustness and ease of use of the standard Groundhog Mobile welfare unit whilst offering a green environmental solution. Giving owners and end users savings by way of reduced fuel usage, reduction in generator servicing, longer generator life, fewer breakdowns and reduced noise pollution.

The Groundhog Eco Fusion mobile welfare units are available in other sizes and configurations: GP360 Fusion for six operatives; GPO500 Fusion with office for 8+2 operatives and the GP500 Fusion for 12-14 operatives.

Useful information

Dimensions 6600mm(L) x 2484mm(W)
Dimensions Including Drawbar 7920mm(L) x 2484mm(W)*
Unladen Weight 3,065kg Including full flush toilet system
GPO660 Fusion seating up to 8 Canteen and 2 office operatives
Offering a pleasant & comfortable
welfare environment

The Eco Fusion Mobile units from Groundhog are suitable for accommodating ten persons, which provides pleasant and safe working environments, ideal for rental companies and contractors.

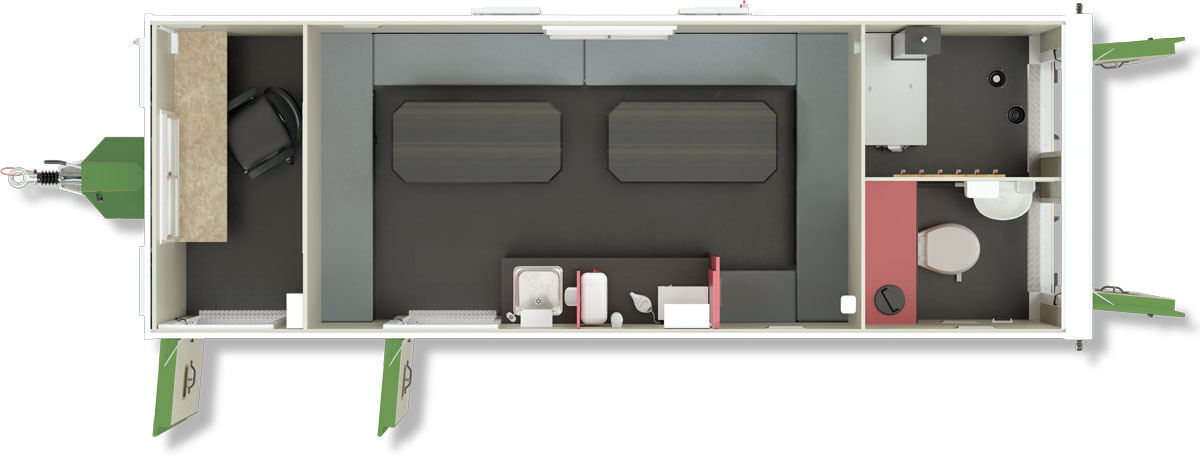

Mobile welfare cabin key features

Accommodating Health & Safety requirements and providing all your on-site needs in one small package.
GP500

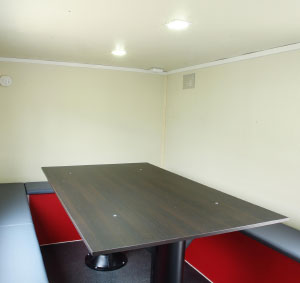

1. Welfare Area
  • Pleasant and light rest area
  • Table and bench seating for up to 10 people
  • Air blown heating system
  • 12V LED lighting with PIR
  • Warm water supplied by on-board heating system
  • Microwave and kettle – both hard-wired
  • Stainless steel sink with instant warm water
  • Paper towels, liquid soap and cup dispenser
  • Fresh & waste water containers
    (20 Ltr cap each)
  • Carbon monoxide monitor & smoke alarm
  • Inverter powered socket & USB connection
  • Generator start panel c/w hour run meter
  • Fusion control panel
  • 12V cooler box (optional)

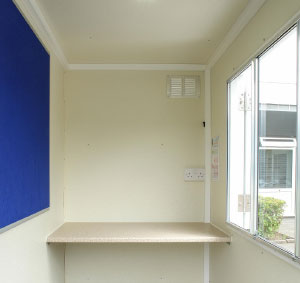

2. Office Area
  • Can accommodate 2 people
  • Air blown heating system
  • 12V LED lighting with PIR
  • Desktop
  • Sliding window with steel shutters, which when closed are secured internally
  • Consumer board c/w RCD & MCB’s
  • Inverter powered double socket for use of laptops & battery charging
  • Notice board
3.Toilet Area

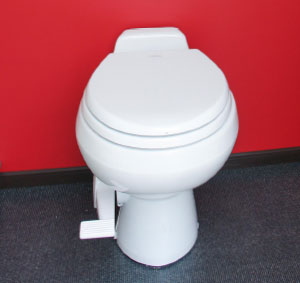

  • Eco full flush ceramic toilet

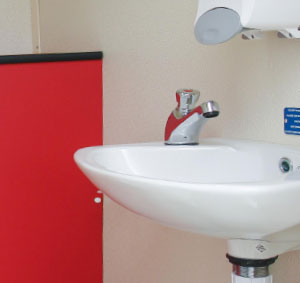

  • Ceramic hand wash basin with warm water tap
  • Air blown heating system
  • 12V LED lighting with PIR
  • Warm water supplied by on-board 12V heating system
  • Waste tank level indicator
4.Warm Room / Generator Area
  • 6kVA diesel generator with exhaust venting
  • 58 litre diesel tank
  • 230L fresh water tank and 250L waste tank
  • Air blown heating system
  • 12V LED lighting with PIR
  • Coat hooks
  • Fuel Active system
  • Generator start battery
Flooring
  • Recycled Non-Slip Flooring
Internal construction
  • Lined and Insulated in GRP, panels with block insulation inserts
External construction
  • Steel profiled panels to side walls and roof.
  • Aluminium sliding Window with steel shutter
  • Steel personnel doors to four separate areas
    (Toilet, Warm Room/Generator, Canteen and Office)
  • Twin axle with unique Groundhog hydraulic system to
    enable the unit to be lowered to Ground level with hand
    held control
  • Hydraulically damped overrun Tow coupling with 40mm
    Eye 50mm ball hitch and jockey wheel (50mm ball hitch optional)
  • Steel nose cone shroud c/w lock to secure whilst lowered
    on site
  • Threaded bushed set in base rail to enable lifting rings to be positioned for low level lifting
  • Fully hot-dipped galvanised chassis
Road lighting
  • 12 Volt L.E.D detachable lighting board c/w mounting bracket and full L.E.D. road lighting which includes front and high level markers.

Optional Extras

The environmental choice

The Eco Fusion Mobile units from Groundhog offers the legendary robust and ease of use of the standard Groundhog GPO660 whilst offering a green environmental solution.

The GPO660 Eco Fusion is powered by an on board 12V battery enabling, the led lights, heating, hot water and inverter sockets (to charge lap tops, mobile phones and small printer) to be run without the need of the on board generator. The generator is only required to charge the onboard battery and run the hot water, kettle and microwave. The generator is fitted with an auto stop timer to save over running and unnecessary wastage.

BATTERY STORES EXCESS POWER
1. GPO660 Fusion control panel

GPO660 Fusion control panel with battery indicator allows the user to control the heater temperature. Included is an inverter powered single socket.

BATTERY STORES EXCESS POWER
2. 12V LED PIR lighting

12V LED PIR lighting automatically senses movement turning lights on automatically. Situated in the canteen, toilet and generator room.

BATTERY STORES EXCESS POWER
3. Battery Guard with Pro Charge Ultra

Pro Charge Ultra (a) charges the 130A/hr battery when the generator is running. The Battery Guard (b) prevents the excessive discharge of the battery and protects electronic appliances against undervoltage.

BATTERY STORES EXCESS POWER
4. Air blown heating system

The air blown heating system does not require the generator to run continuously due to the on-board battery system saving on fuel and servicing costs. Heating outlets set in canteen and generator room.

GENERATOR PRODUCES POWERGENERATOR PRODUCES POWER
BATTERY STORES EXCESS POWERBATTERY STORES EXCESS POWER
NO WASTED POWERNO WASTED POWER
LESS FUEL USEDLESS FUEL USED
COST SAVINGS ON FUEL USECOST SAVINGS ON FUEL USE

It saves you money

The Eco Fusion Mobile units' environmental features give owners and end users savings by way of reduced fuel usage, 60% reduction in generator servicing, longer generator life, fewer breakdowns and massively reduced noise pollution.
  • High quality buildHigh quality build
  • Reduced fuel usageReduced fuel usage
  • 60% reduction in generator servicing60% reduction in generator servicing
  • Longer generator life Longer generator life
  • Fewer breakdownsFewer breakdowns
  • Full service and maintenance package Full service and maintenance package
  • Roof mounted solar panelRoof mounted solar panel
Which leads to…
  • Increased longevity of unitIncreased longevity of unit
  • Extended warrantiesExtended warranties
  • Higher residual valueHigher residual value
Saving you money…
Saving you money
Greater return on investment

Value Proposition

Figures are for guidance only. For your own specific savings, contact us for your bespoke value proposition.

Providing a secure working environment

All steel construction
All steel
construction

Steel construction forms one of the most secure welfare units on the market.

Ground Lowering Mechanism
Ground Lowering Mechanism

Groundhogs unique lowering system which enables the unit to be secured at ground level when sited. This also enables a safe entry and exit by personnel without the requirement for steps.

Highly secure double lock door
Highly secure double lock door

Steel personnel doors with built in locking mechanism and hidden hinges.

High security window shutters
High security window shutters

The windows are protected by steel shutters, which are locked internally and can only be opened from inside the rest room.

Secure nose cone
Secure
nose cone

The nosecone security cover is a swing operated hood which protects the towing coupling and once locked, prevents the unit from being removed off site.

Easily deployed

Secured in less than 3 minutes

Easily towed, one man operation secured and manoeuvred on site.

Fast deployment time means more time on the job, making it the money saving choice of welfare unit for rental companies and contractors.

Push button controls to lower front and rear hydraulic rams
Push button controls to lower front and rear hydraulic rams

Push button controls to lower front and rear hydraulic rams

Rams lift unit from ground ready to release axle pins

Rams lift unit from ground ready to release axle pins

Unit is lowered and canopy locked to protect towing facility

Unit is lowered and canopy locked to protect towing facility

1 min
3 mins

CDM & HSE compliant

The Groundhog Welfare Unit complies with Health & Safety regulations which guarantees certain facilities for contractors working on site.

SAFETY WORKING REGULATIONS

These include sanitary conveniences, washing facilities, access to drinking water, accommodation for drying and changing clothes, and an area for rest and eating.

Groundhog welfare units are supplied with a current electrical installation test certificate.

Sanitary Conveniences
Washing Facilities
Provision for Drinking Water
Provision for Drying Clothing
Facilities for Changing Clothing
Facilities for Rest & to Eat Meals
Regulation 20 Sanitary Conveniences
Regulation 21 Washing Facilities
Regulation 22 Provision for Drinking Water
Regulation 23 Provision for Drying Clothing
Regulation 24 Facilities for Changing Clothing
Regulation 25 Facilities for Rest & to Eat Meals
