SP360 Eco Fusion Static Welfare Units
THE GROUNDHOG, ANTI-VANDAL

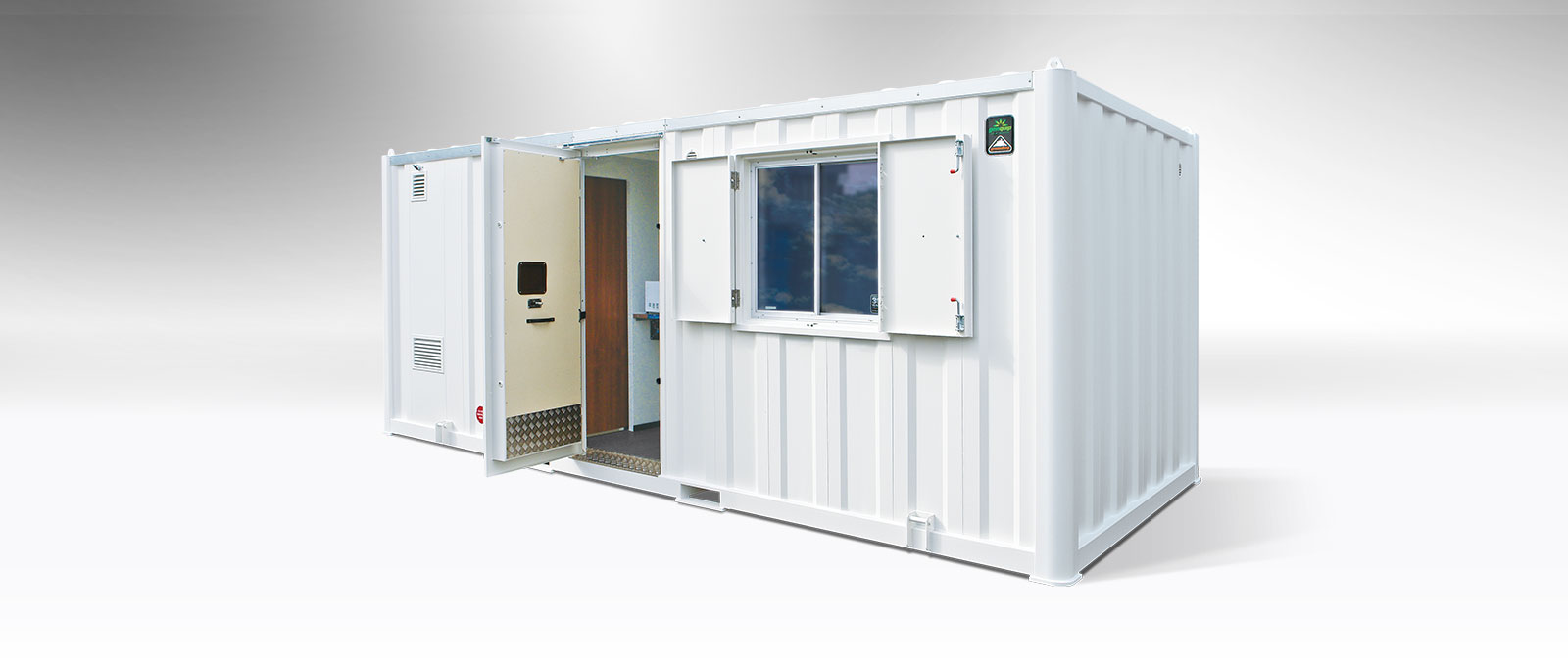

SW6100 STANDARD
Static Welfare Units

Incredibly robust, efficient and cost effective

The Standard SW6100 accommodates 8 people and provides a pleasant, spacious, restful environment, ideal for construction, rail and highways contractors.

Once lifted into position, the unit provides a vandal resistant accommodation and comes fitted with features such as a standard recirculating toilet, the latest warm water heater system, wall mounted heaters, microwave and kettle which are powered by an on-board 9.8kVA generator.

  • Robust, anti-vandal and incredibly efficient
  • Provides a pleasant, spacious, restful environment
  • Ideal for construction, rail and highways contractors

Offering a pleasant & comfortable welfare environment

The Static units from Groundhog are suitable for accommodating six persons, which provides pleasant and safe working environments, ideal for rental companies and contractors.

Providing a secure working environment
All steel construction
All steel
construction

Steel construction forms one of the most secure welfare units on the market.

Highly secure double lock door
Highly secure double lock door

Steel personnel doors with built in locking mechanism and hidden hinges.

High security window shutters
High security window shutters

The windows are protected by steel shutters, which are locked internally and can only be opened from inside the rest room.

CDM & HSE compliant
The Groundhog Welfare Unit complies with Health & Safety regulations which guarantees certain facilities for contractors working on site.

SAFETY WORKING REGULATIONS

These include sanitary conveniences, washing facilities, access to drinking water, accommodation for drying and changing clothes, and an area for rest and eating.

Groundhog welfare units are supplied with a current electrical installation test certificate.

Sanitary Conveniences
Washing Facilities
Provision for Drinking Water
Provision for Drying Clothing
Facilities for Changing Clothing
Facilities for Rest & to Eat Meals

Seats up to 8 people
seating icon seating icon seating icon seating icon seating icon seating icon seating icon seating icon
Dimensions 6120mm(L) x 2755mm(W)
Unladen Weight 4,000kg*
Possible Gross Weight 4,300kg*
Generator 9.8kVA

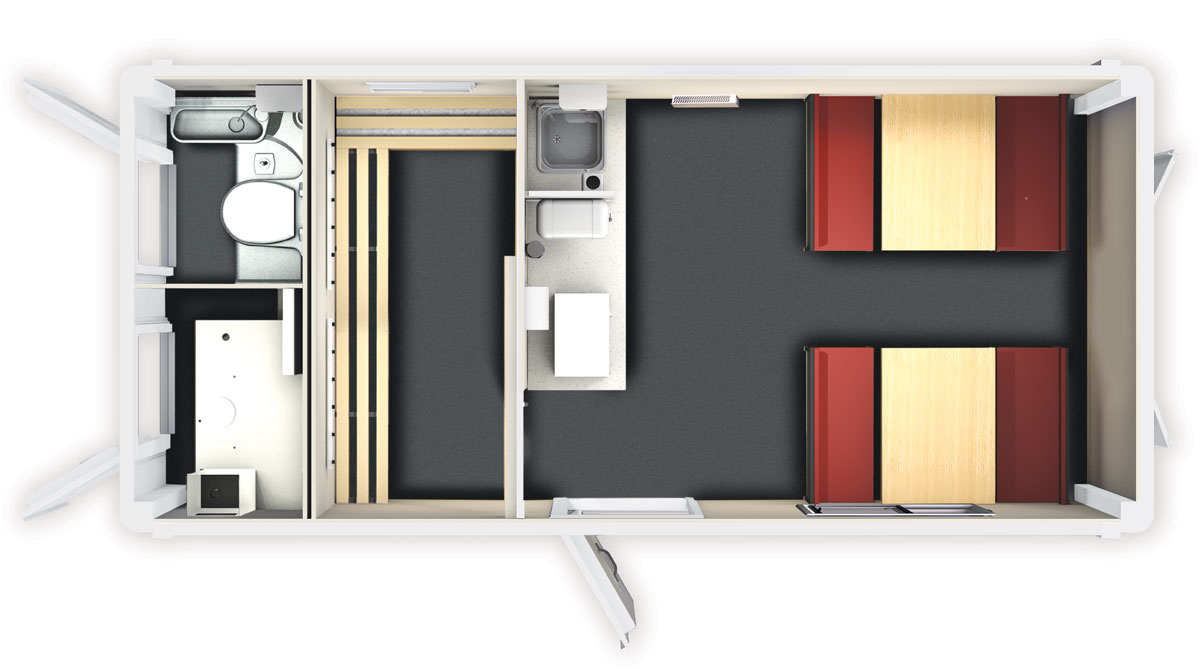

SW6100D
1. Welfare Area
  • Pleasant and light rest area
  • Table and bench seating for up to 8 people
  • Oil filled radiator
  • Warm water supplied by on-board heating system
  • Large stainless steel sink c/w warm water tap
  • Microwave and kettle – both hard-wired
  • Fresh & waste water containers (20 Ltr cap each)
  • 1 x 230V double socket
  • Consumer board c/w RCD & MCB’s
  • Hour run meter on generator
  • Paper towel dispenser
  • Liquid soap dispenser
  • Disposable cup dispenser
  • Carbon monoxide monitor and smoke alarm
  • High level vents
  • 1000mm base unit c/w 10L water heating system
  • 230V strip lighting
  • 6x4 felt noticed board
2. Drying Area
  • 230V tubular heater
  • High level window
  • Coat hooks
  • 230V strip lighting
  • Generator service hatch
  • Bench seating
3. Toilet Area
  • Plastic recirculating toilet c/w ventilation pipe
  • Forearm pedestal wash basin c/w warm water tap
  • Toilet tank size: 280L
  • Warm water supplied by on-board heating system
  • Toilet roll holder
  • 230v bulkhead light
  • Liquid soap & paper towel dispenser
4. Warm Room / Generator Area
  • 9.8kVA super silent diesel generator with exhaust outlet and ventilation
  • 230v bulkhead light
  • 300 litre diesel tank with filler neck and level gauge
  • 3mm thick O/P (over-plain) diamond durbar plate flooring
  • Generator hour run meter
  • Generator start battery
  • Fuel tank runtime = approx. 120 hours
Flooring
  • 2MM vinyl sheet / Recycled Non-Slip Flooring
Internal construction
  • Lined and Insulated in GRP, panels with block insulation
    inserts
External construction
  • Steel profiled panels to side walls and roof.
  • Aluminium sliding Window with steel shutter
  • Steel personnel doors to three separate areas
    (Toilet, Warm Room/Generator and Canteen)
  • Fixed low level lifting & fork pockets
