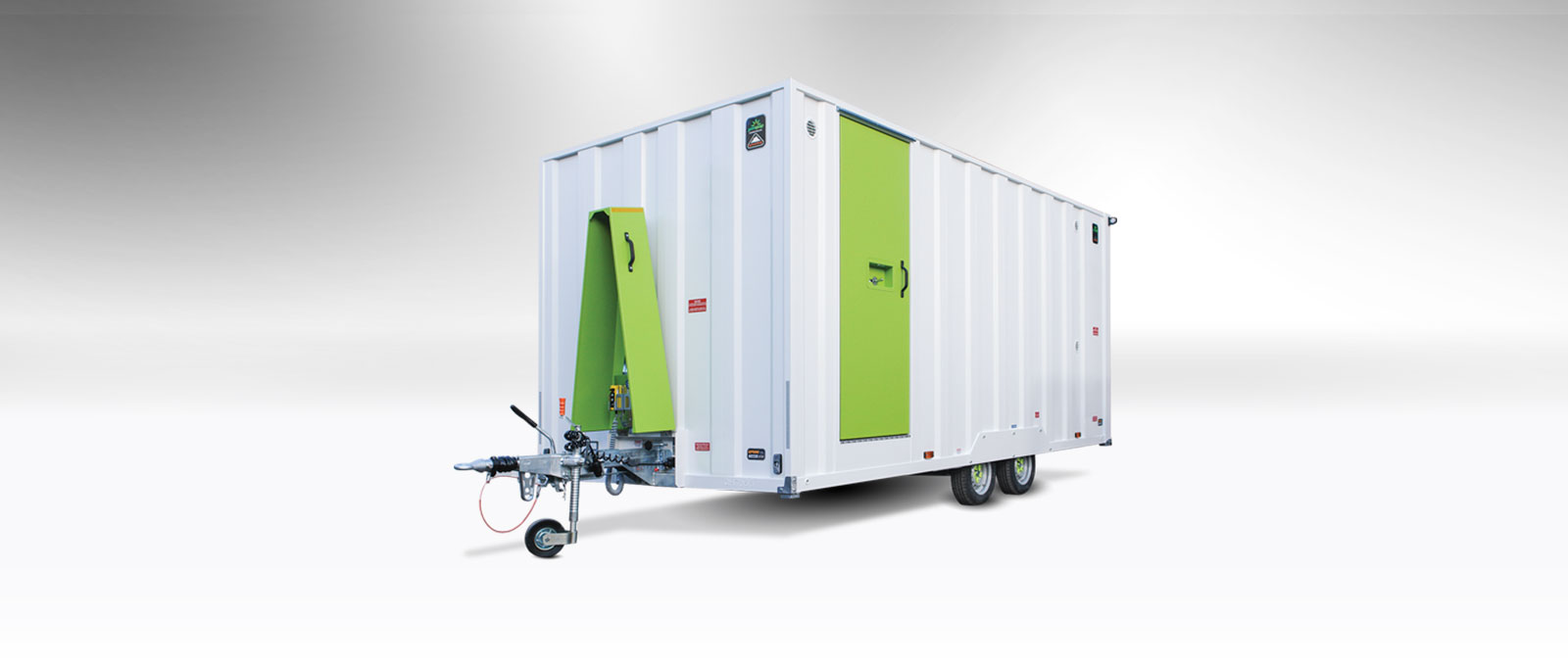

The twin axle Mobile GPO500 Fusion Pulse offers the robustness and ease of use of the Groundhog® GP500 but it also offers a separate spacious office for managerial/ administration personnel, ideal for rental companies and contractors.
The unit offers cost savings as the heating is supplied by an on board system which does not require the generator to run. The generator will only be required for microwave, kettle and hot water system.
Powered by roof mounted solar panel with generator back up.
The advantage of galvanised steel is its superior rust resistance, ensuring the steel's integrity for years to come.
12V diesel powered air blown heating system
Warm water from an on-board heating system
12V LED PIR lighting automatically senses movement turning lights on or off as required. Situated in the canteen, toilet and generator room.
Inverter powered sockets with USB connectors

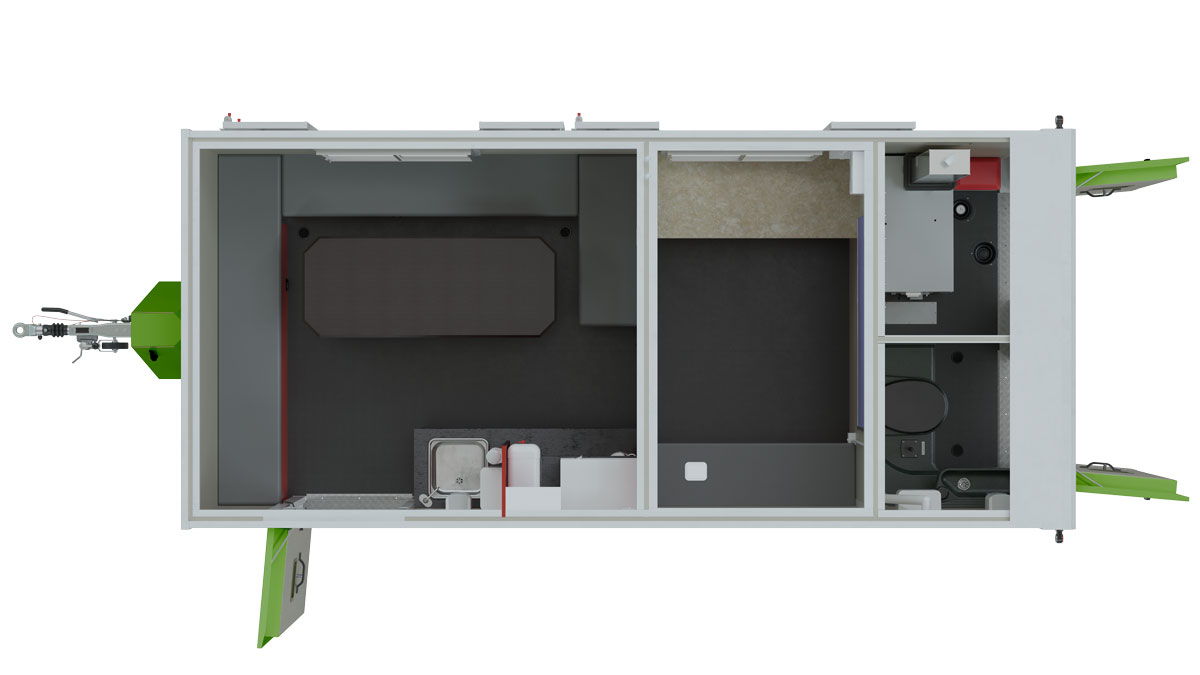

Separate spacious office with table and seating for up to 2 operatives allows greater flexibility on-site.

The GPO500 Fusion Mobile unit can accommodate eight to ten people, with a well equipped canteen area featuring hard-wired microwave and kettle, access to drinking water, and large stainless steel sink c/w warm water tap. These facilities provide a pleasant and safe working environment, ideal for rental companies and contractors.
Learn more
Spacious welfare area provides a pleasant and restful environment.
Well equipped canteen area with hard-wired microwave and kettle, access to drinking water, and large stainless steel sink c/w warm water tap.
Separate office space giving greater flexibility on-site.
Recirculating toilet c/w Forearm pedestal wash basin with warm water tap
Suitable for powering laptops, phone chargers and small printers.
12V diesel powered air blown heating system
Seat bases constructed from WISA®-Multiwall, a high quality plastic coated wall lining panelling.
Environmentally-friendly and economical, light weight and durable, impervious against spillage of: diesel fuel / oil & detergents.
12V LED PIR lighting automatically senses movement turning lights on or off as required.
The water outlet delivers warm water instantaneously and is delivered via a 12V pump.
A recirculating forearm wash basin is located in the toilet area and provides warm water which is supplied by the on-board heating system.
The robust all steel construction forms one of the most secure welfare units on the market. The personnel door has a built-in lock with hidden hinges, the high-security shutters protect the internally locked windows, and a lockable nosecone covers the towing coupling preventing the unit from being removed off site.
Learn more
The advantage of galvanised steel is its superior rust resistance, ensuring the steel's integrity for years to come.
Powered by roof mounted solar panel with generator back up
Steel construction forms one of the most secure welfare units on the market.
Groundhogs unique lowering system which enables the unit to be secured at ground level when sited. This also enables a safe entry and exit by personnel without the requirement for steps.
Steel personnel doors with built in locking mechanism and hidden hinges.
The windows are protected by steel shutters, which are locked internally and can only be opened from inside the rest room.
The nosecone security cover is a swing operated hood which protects the towing coupling and once locked, prevents the unit from being removed off site.
Welded bush for removable low level lifting eyes
Four removable bolts for easy wheel access
| Seats up to 8 to 10 people | |
|---|---|
|
| |
| Generator | 6 kVA |
| Dimensions | 5000 mm (L) x 2300 mm (W) |
| Dimensions (including drawbar) | 6320 mm (L) x 2300 mm (W) |
| Unladen Weight | 2,450 kg |
| Possible Gross Weight | 3,000 kg |

| Length | 5000 mm |
|---|---|
| Length (including drawbar) | 6320 mm |
| Width | 2.3 m |
| Height (on wheels) | 2.9 m |
| Height (on ground) | 2.5 m |
| Unladen Weight | 2,450 kg |
| Possible Gross Weight | 3,000 kg |
| Solar Panel | x1 |
| Generator | 6 kVA |
| Fresh Water | 20 Litres |
| Waste Water | 20 Litres |
| Toilet Tank Size | 135 Litres |
| Fuel Tank Size | 58 Litres |
The GPO500 Fusion Pulse unit is powered by a proven robust and easy to use generator with world class performance.
Learn more
Fusion Pulse utilises a highly efficient AGM battery and is charged via the intelligent solar power system built in controller, backed up by an on-board power silenced generator – ensuring optimum performance is maintained when in use and unmanned.
This allows the LED lighting, diesel powered heating system and inverter powered electrical sockets to be operational and also dispenses warm water in toilet and canteen – all without the need for the generator to be running.*
* The generator only needs to be running to power the microwave, kettle & hot water system
works.

Engineering a Zero Carbon Future. Helping you achieve realistic carbon reduction goals.
Figures are for guidance only. For your own specific savings, contact us for your bespoke value proposition.





The latest concept in hybrid solar technology delivers cost effective, environmentally efficient, robust & easy to operate welfare units.

Easily towed, one man operation secured and manoeuvred on site, the unit can be deployed and secured in less than 3 minutes.
View deployment video
