GP360 Fusion Pulse

Single axle mobile welfare

GP360 FUSION PULSE UNIT

GP360 Fusion Pulse logo

Innovative, functional, cost effective and environmentally efficient.

The Mobile GP360 Fusion Pulse offers the legendary robustness and ease of use of the standard Groundhog® mobile welfare unit whilst offering a green environmental solution.

Powered by solar technology with generator backup, these units ensure optimum performance is maintained when in use and unmanned, giving owners and end users savings by way of reduced fuel usage, reduction in generator servicing, longer generator life, fewer breakdowns and reduced noise pollution – providing all your on-site needs in one reliable and cost effective package, ideal for rental companies and contractors.

GP360 Fusion Pulse Highlights.
GP360 Eco Fusion Pulse interior

Interior.

The GP360 Fusion Mobile unit can accommodate six persons, with a well equipped canteen area featuring hard-wired microwave and kettle, access to drinking water, and large stainless steel sink c/w warm water tap. These facilities provide a pleasant and safe working environment, ideal for rental companies and contractors.

Learn more
Interior.
GP360 Eco Fusion Pulse Exterior

Exterior.

The robust all steel construction forms one of the most secure welfare units on the market. The personnel door has a built-in lock with hidden hinges, the high-security shutters protect the internally locked windows, and a lockable nosecone covers the towing coupling preventing the unit from being removed off site.

Learn more
Exterior.
Key Specification Data.
GP360 Fusion Pulse mobile welfare unit.
Seats up to 6 people
seating iconseating iconseating iconseating iconseating iconseating icon
Generator 6 kVA
Dimensions 3655 mm (L) x 2300 mm (W)
Dimensions (including drawbar) 4920 mm (L) x 2300 mm (W)
Unladen Weight 1,700 kg
Possible Gross Weight 1,800 kg
GP360 Eco Fusion Pulse side view
Detailed Specifications.
Length 3655 mm
Length (including drawbar) 4920 mm
Width 2.3 m
Height (on wheels) 2.9 m
Height (on ground) 2.5 m
Unladen Weight 1700 kg
Possible Gross Weight 1800 kg
Solar Panel x1
Generator 6 kVA
Fresh Water 20 Litres
Waste Water 20 Litres
Toilet Tank Size 135 Litres
Fuel Tank Size 58 Litres

  • Table and bench seating for up to 6 people
  • 12V LED lighting with PIR
  • 12V diesel powered air blown heating system
  • Warm water supplied by a 230V on-board heating system
  • Large stainless steel sink c/w warm water tap
  • Single inverter powered socket & USB connection
  • Generator start panel c/w hour run meter
  • Fresh & waste water containers (20 Ltr capacity each)
  • Consumer board c/w RCD & MCBs
  • Carbon monoxide monitor and smoke alarm
  • 130Amp hour battery/ charger & battery guard

  • Plastic recirculating toilet
  • 12V LED lighting with PIR
  • Forearm wash basin c/w warm water tap
  • Warm water supplied by a 230V on-board heating system

  • 12V LED lighting with PIR
  • 12V diesel powered air blown heating system
  • Access to fuel tank with separate fuel level gauge (58 Ltr capacity)
  • Fuel Active system
  • Generator start battery
  • Fuel tank runtime = approx. 25 hours

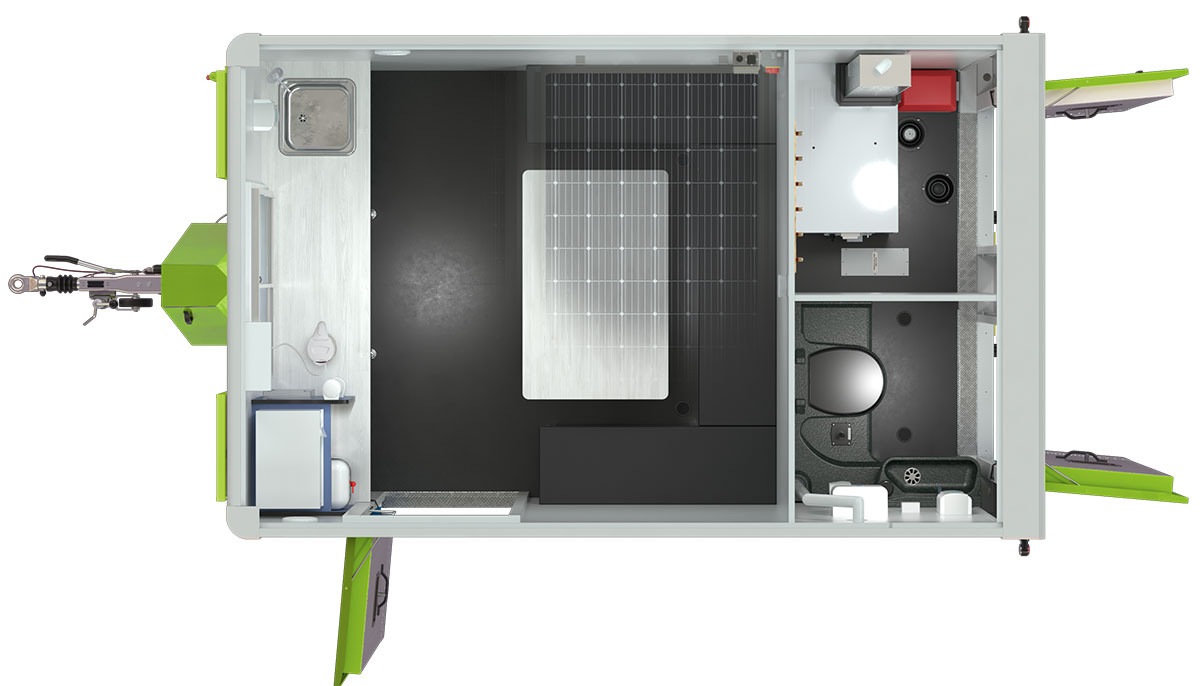

GP360 Eco Fusion Pulse Plan view GP360 Eco Fusion Pulse Plan view
Hog Power S60 Hog Power S60

HogPower
S60.

The GP360 Fusion Pulse unit is powered by a proven robust and easy to use generator with world class performance.

Learn more
Fusion Pulse logo

Intelligent Solar Technology.

Fusion Pulse utilises a highly efficient AGM battery and is charged via the intelligent solar power system built in controller, backed up by an on-board power silenced generator – ensuring optimum performance is maintained when in use and unmanned.

This allows the LED lighting, diesel powered heating system and inverter powered electrical sockets to be operational and also dispenses warm water in toilet and canteen – all without the need for the generator to be running.*

* The generator only needs to be running to power the microwave, kettle & hot water system

How the Fusion Pulse system
byGroundhog logo white works.
How the Fusion Pulse system by Groundhog works How the Fusion Pulse system by Groundhog works

Eco Benefits.

Engineering a Zero Carbon Future. Helping you achieve realistic carbon reduction goals.

Figures are for guidance only. For your own specific savings, contact us for your bespoke value proposition.

fuel costs reduced by up to 80%
generator runtim reduced up to 80%
Low noise polution
0% nox and sox when generator is not in use
co2 emissions reduced up to 80%

Saving you money.

The latest concept in hybrid solar technology delivers cost effective, environmentally efficient, robust & easy to operate welfare units.

saving money
saving money
Easily deployed

Easily deployed.

Easily towed, one man operation secured and manoeuvred on site, the unit can be deployed and secured in less than 3 minutes.

View deployment video

Easily deployed.

Deployed and secured in less than 3 minutes.

Easily towed, one man operation secured and manoeuvred on site.

Fast deployment time means more time on the job, making it the money saving choice of welfare unit for rental companies and contractors.

View deployment video
