The Groundhog GP500 Fusion
Welfare Units have been approved by VCA.

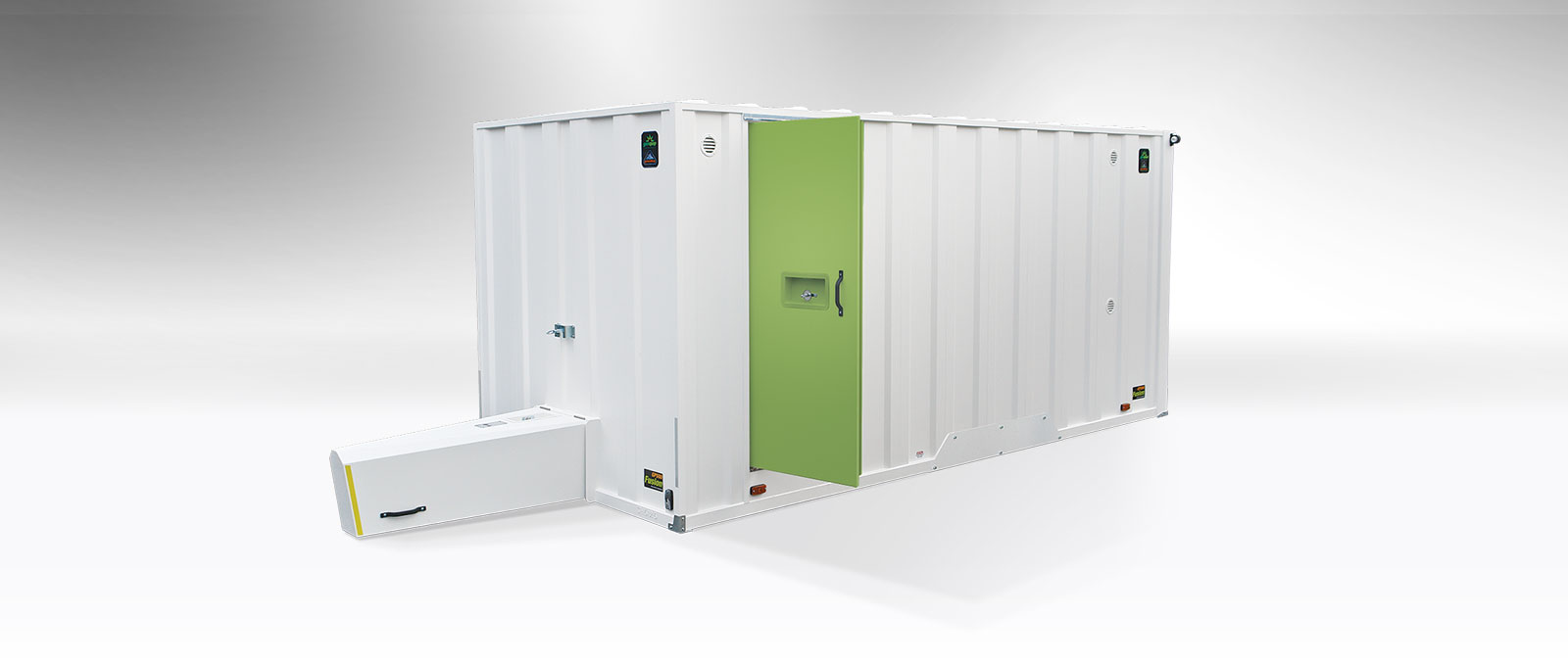

Mobile welfare unit GP500 fusion

Mobile Welfare Unit

Groundhog GP500 Fusion

Spacious, comfortable, well equipped, easily towed & secured in minutes by one person

The Groundhog GP500 Fusion Range of Mobile Office Welfare Units is ideal for flexible on-site applications, offering a larger seating area, accommodating up to 10 persons.
Dimensions 5000mm(L) x 2300mm(W)
Dimensions Including Drawbar 6320mm(L) x 2300mm(W)
Unladen Weight 2300kg
Gross Weight 3500kg
Generator 6kVA

Groundhog Mobile Welfare Unit GP500

The twin axle GP500 offers the robustness and ease of use of the Groundhog GP360 whilst providing the added seating area to accommodate a larger workforce.

The GP500 mobile welfare office offers cost savings as the warm water and heating is supplied by an on board system which does not require the generator to run. The generator will only be required for microwave and kettle. GP500 Fusion Range

  • Spacious, well equipped Canteen / Seating Area
  • Comfortably sits up to 10 people
  • Secured in less than 3 minutes
  • High security doors and windows
  • Meets HSE requirements

The units are suitable for accommodating ten persons, which provides pleasant and safe working environments, ideal for rental companies and contractors.

Easily towed, one man operation secured and manoeuvred on site, in less than 3 minutes. Its’ many safety features make it a high secure and money saving choice of welfare unit for rental companies and contractors.

DownloadDOWNLOAD BROCHURE
Mobile unit secured in less than 3 minutes
Push button controls to lower front and rear hydraulic rams
Push button controls to lower front and rear hydraulic rams
Push button controls to lower front and rear hydraulic rams
Rams lift unit from ground ready to release axle pins Rams lift unit from ground ready to release axle pins
Unit is lowered and canopy locked to protect towing facility Unit is lowered and canopy locked to protect towing facility
1-3 min time scale

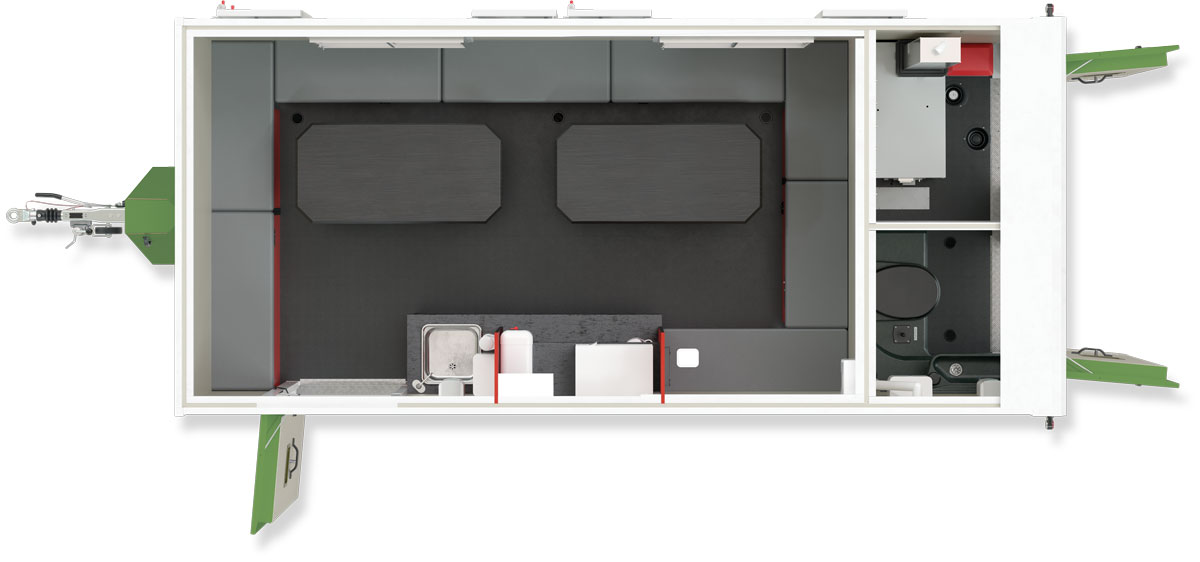

mobile welfare unit GP500 Fusion
Mobile Welfare Cabin Key features
Accommodating Health & Safety requirements and providing all your on-site needs in one small package.

Welfare Area

  • Table and Bench Seating - Up To 10 People
  • Water Heating System c/w 12V Water Pump - 5L 230V Water Heater
  • Heating - 12V Diesel Powered Heating
  • Diesel Powered Heating System Run Time - 8 Hours
  • Lighting - 12V LED Lighting c/w PIR
  • Electrical Sockets - 1 x Single 2Amp Socket
  • 12V Socket and USB Connection
  • Consumer Board c/w RCD & MCB's
  • Generator Start Panel c/w Hour Run Meter
  • Microwave and Kettle Hardwired
  • Worktop With Wet And Dry Partition Wall and Large Stainless Steel Sink With Warm Water Tap
  • Fresh and Waste Water Storage - 2 x 20L Water Butts (Fresh & Waste)
  • Carbon Monoxide Monitor and Smoke Alarm
  • Paper Towels, Liquid Soap and Cup Dispenser

Toilet Area

  • Toilet - Plastic Recirculating Toilet c/w Ventilation Pipe
  • Wash Basin - Jobec Pedestal Sink
  • Total Toilet Tank Size - 280L
  • Heating - 12V Diesel Powered Heating
  • Lighting - 12V LED c/w PIR
  • Liquid Soap and Paper Towel Dispenser

Drying / Generator Room

  • Heating - 12V Diesel Powered Heating
  • Lighting - 12V LED Lighting c/w PIR
  • Fuel Active
  • Generator Start Battery
  • Fuel Tank Capacity - 58L
  • Fuel Tank Runtime - Approx. 25 Hours
  • Coat Hooks
